Full automatic Machines
Full automatic Machines

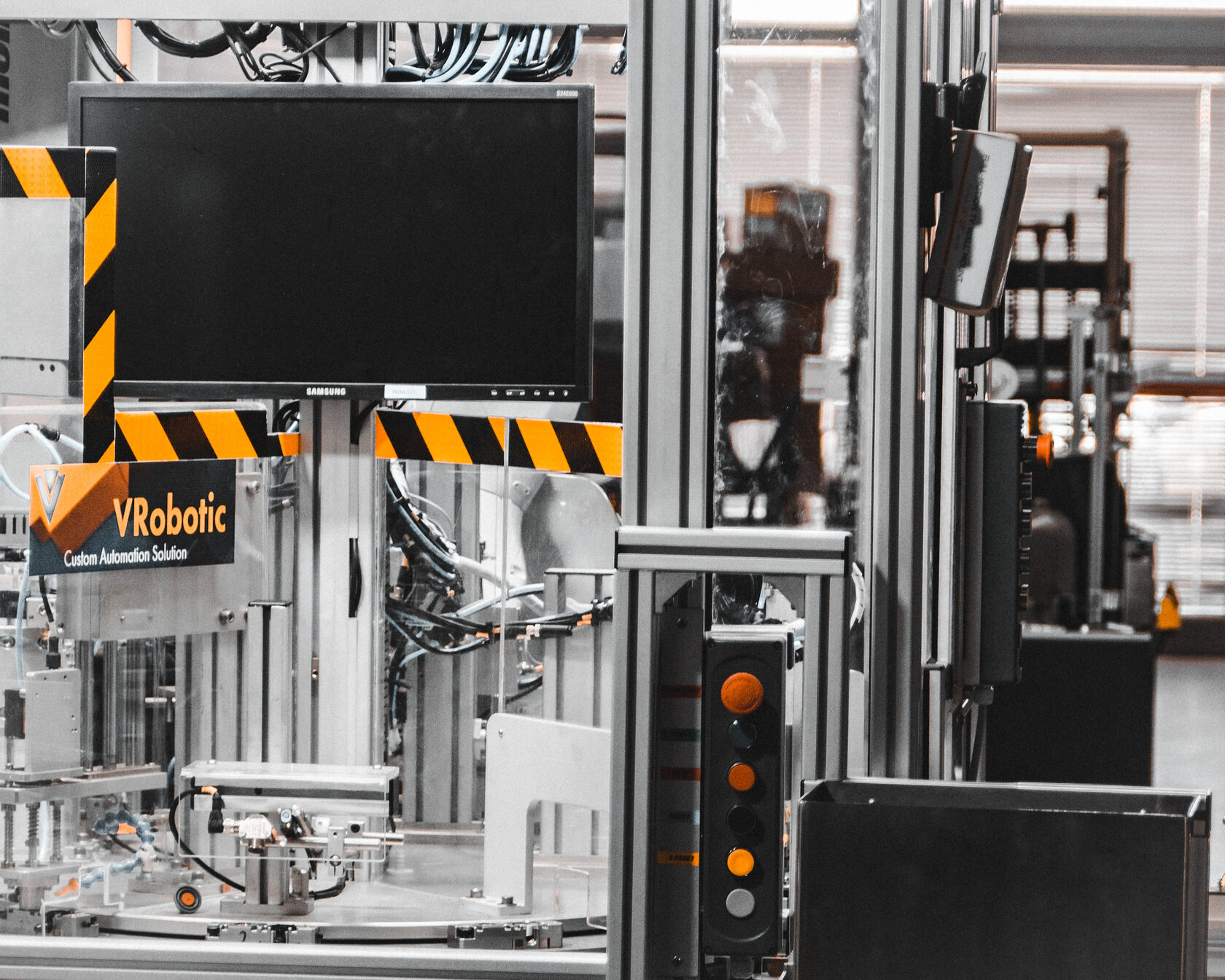

This machine has a capability that combines the following feed and assembly systems:
A 6-axis robotic system that feeds by obtaining very accurate product coordinates by the "VISION" system.
Bowl Feeder system feeds the O-rings to special area and pick and place system based on specially designed gripper and servo system put the O-ring on the part's nipple
The machine has many vision systems whose purpose is inspection that the assembly process is carried out as repaired.
A laser-operated system designed to measure and control the quality of the various components of a product.
Welding station based on Ultrasonic welding system after assembly stage.
Leak test station based on ATEQ precision test equipment.
The project combines non-standard mechanisms that were developed by our company specifically for this machine such as: disks and balls feeder, product sealing mechanism, special grippers for robot
The machine incorporates advanced control systems which are connected via communication network.The cycle time of the machine is about 6 seconds.
Bowl Feeder system feeds the O-rings to special area and pick and place system based on specially designed gripper and servo system put the O-ring on the part's nipple
The machine has many vision systems whose purpose is inspection that the assembly process is carried out as repaired.
A laser-operated system designed to measure and control the quality of the various components of a product.
Welding station based on Ultrasonic welding system after assembly stage.
Leak test station based on ATEQ precision test equipment.
The project combines non-standard mechanisms that were developed by our company specifically for this machine such as: disks and balls feeder, product sealing mechanism, special grippers for robot
The machine incorporates advanced control systems which are connected via communication network.The cycle time of the machine is about 6 seconds.
Valve assembly machine.
Machine designed for high speed assembly of product which consist of 2 parts and seal and can handle various products
products supplied automatically by bowl and linear feeder.
Before performing final assembly, product parts go through tests like, vacuum test to ensure that the seal is present, height tests with high accuracy sensors to confirm soldering process.
When the tests are done, the machine performs ultrasonic soldering, after process is finished, quality test carried out by vision system.
At the end 6-axis robot moves product to the test machine.
products supplied automatically by bowl and linear feeder.
Before performing final assembly, product parts go through tests like, vacuum test to ensure that the seal is present, height tests with high accuracy sensors to confirm soldering process.
When the tests are done, the machine performs ultrasonic soldering, after process is finished, quality test carried out by vision system.
At the end 6-axis robot moves product to the test machine.
Automatic key assembly machine
A machine that works completely automatically, from the stages of supplying the product parts and related details to receiving the complex product according to the customer's requirement ...
The machine has several stations, from feed stations to precise drilling stations where the whole process is carried out by a servo system ...
The machine has quality control stations including laser meters sensors and Vision system.
The machine has three index tables that works simultaneously.
This machine has a production capacity of 50 different and varied types of parts which are determined according to the customer's requirement.
Cycle time of this machine is about 5 seconds ...
The machine has several stations, from feed stations to precise drilling stations where the whole process is carried out by a servo system ...
The machine has quality control stations including laser meters sensors and Vision system.
The machine has three index tables that works simultaneously.
This machine has a production capacity of 50 different and varied types of parts which are determined according to the customer's requirement.
Cycle time of this machine is about 5 seconds ...
Automatic key assembly machine
A machine that works completely automatically, from the stages of supplying the product parts and related details to receiving the complex product according to the customer's requirement ...
The machine has several stations, from feed stations to precise drilling stations where the whole process is carried out by a servo system ...
The machine has quality control stations including laser meters sensors and Vision system.
The machine has three index tables that works simultaneously.
This machine has a production capacity of 50 different and varied types of parts which are determined according to the customer's requirement.
Cycle time of this machine is about 5 seconds ...
The machine has several stations, from feed stations to precise drilling stations where the whole process is carried out by a servo system ...
The machine has quality control stations including laser meters sensors and Vision system.
The machine has three index tables that works simultaneously.
This machine has a production capacity of 50 different and varied types of parts which are determined according to the customer's requirement.
Cycle time of this machine is about 5 seconds ...
A machine that functions automatically for assembling precise complex pins
This product consists of 4 different components fed into the automatic assembly process of the machine by bowl-feeder system
The machine has several assembly stations
The cycle time of this machine is about 3.5 seconds.
The machine has several assembly stations
The cycle time of this machine is about 3.5 seconds.
A machine that functions automatically for assembling precise complex pins
This product consists of 4 different components fed into the automatic assembly process of the machine by bowl-feeder system
The machine has several assembly stations
The cycle time of this machine is about 3.5 seconds.
The machine has several assembly stations
The cycle time of this machine is about 3.5 seconds.
Semi-automatic Machines
Semi-automatic Machines
Specialized line for checking and marking cast aluminum parts
It is designed for checking cast aluminum parts for the presence of hidden microdefects, followed by marking, applying a QR code with the PIN MARKER device and automatically checking the quality of the readability of the code.
The line consists of two semi-automatic devices controlled by one controller. The first is responsible for checking the integrity of the product, the second - for marking and checking the readability of the information.
The line consists of two semi-automatic devices controlled by one controller. The first is responsible for checking the integrity of the product, the second - for marking and checking the readability of the information.
Semi-automatic machine for express checking and marking cast aluminum parts
Designed for express inspection of cast aluminum parts for the presence of hidden micro cracks with subsequent marking.
The duration of inspection and marking of one part does not exceed 30 seconds.
The duration of inspection and marking of one part does not exceed 30 seconds.
Semi-automatic machine for express checking and marking cast aluminum parts
Designed for express inspection of cast aluminum parts for the presence of hidden micro cracks with subsequent marking.
The duration of inspection and marking of one part does not exceed 30 seconds.
The duration of inspection and marking of one part does not exceed 30 seconds.
Universal laser markers for plastic products
It is a linear step-moving table with a set of removable 4-position stands for various types of products.
Checking the presence of the product at the position, control of applied technological marks and product quality is carried out by an inspection Vision System in the visible and ultraviolet ranges.
The presence of technological marks ensures that the product has passed the entire technological cycle.
The checked products are marked and automatically discarded in boxes with finished products.
Checking the presence of the product at the position, control of applied technological marks and product quality is carried out by an inspection Vision System in the visible and ultraviolet ranges.
The presence of technological marks ensures that the product has passed the entire technological cycle.
The checked products are marked and automatically discarded in boxes with finished products.
Universal laser markers for plastic products
It is a linear step-moving table with a set of removable 4-position stands for various types of products.
Checking the presence of the product at the position, control of applied technological marks and product quality is carried out by an inspection Vision System in the visible and ultraviolet ranges.
The presence of technological marks ensures that the product has passed the entire technological cycle.
The checked products are marked and automatically discarded in boxes with finished products.
Checking the presence of the product at the position, control of applied technological marks and product quality is carried out by an inspection Vision System in the visible and ultraviolet ranges.
The presence of technological marks ensures that the product has passed the entire technological cycle.
The checked products are marked and automatically discarded in boxes with finished products.
Semi-automatic device for assembly,control and marking of plastic products
Designed for assembling products consisting of various parts, differing in color. The presence of all necessary components is checked by an inspection Vision System.
The assembly is carried out in three stages, after which the product moves to the control station for a functional test in accordance with the specifications.
Products that have passed all the tests are marked with a colored dot and loaded into the tray with the "good" product.
Rejected parts are removed to a closed compartment, eliminating the possibility of getting defective products to the customer.
The assembly is carried out in three stages, after which the product moves to the control station for a functional test in accordance with the specifications.
Products that have passed all the tests are marked with a colored dot and loaded into the tray with the "good" product.
Rejected parts are removed to a closed compartment, eliminating the possibility of getting defective products to the customer.
Semi-automatic device for assembly,control and marking of plastic products
Designed for assembling products consisting of various parts, differing in color. The presence of all necessary components is checked by an inspection Vision System.
The assembly is carried out in three stages, after which the product moves to the control station for a functional test in accordance with the specifications.
Products that have passed all the tests are marked with a colored dot and loaded into the tray with the "good" product.
Rejected parts are removed to a closed compartment, eliminating the possibility of getting defective products to the customer.
The assembly is carried out in three stages, after which the product moves to the control station for a functional test in accordance with the specifications.
Products that have passed all the tests are marked with a colored dot and loaded into the tray with the "good" product.
Rejected parts are removed to a closed compartment, eliminating the possibility of getting defective products to the customer.
Assembly and test system Special height test fixture
Assembly machine with special pressure released precision contact test.
Automatic unloading and good/ reject separation.
Automatic unloading and good/ reject separation.
Assembly and test system Special height test fixture
Assembly machine with special pressure released precision contact test.
Automatic unloading and good/ reject separation.
Automatic unloading and good/ reject separation.
Assembly and functional test machine for water taps
3 stations of assembly with adjustable servo unique wrench tools.
Unique test station with leak and flow tests.
Pick and place system for cover assembly
Electrochemical Etching marking system.
Unique test station with leak and flow tests.
Pick and place system for cover assembly
Electrochemical Etching marking system.
Assembly and functional test machine for water taps
3 stations of assembly with adjustable servo unique wrench tools.
Unique test station with leak and flow tests.
Pick and place system for cover assembly
Electrochemical Etching marking system.
Unique test station with leak and flow tests.
Pick and place system for cover assembly
Electrochemical Etching marking system.
Universal robots
Pick and place system for parts coating cleaning.
Universal robots
Pick and place system for parts coating cleaning.
